Visualising a collection

A large RO-Crate is hard to picture from tables alone. crategraph can draw it: a one-look overview of the types, the whole network rendered in the browser, focused subgraphs you can pan and click, and a 3D view of a small neighbourhood. This tutorial works through all of these on a big, richly connected crate.

We'll use the Encyclopedia of Australian Science and Innovation (EOAS) crate, a biographical database of Australian scientists with their publications, institutions, and the places they worked. It holds tens of thousands of entities, so it makes the renderers earn their keep.

What you'll learn

• A type-level overview of any crate with glimpse().
• Rendering a whole graph with the interactive sigma (2D WebGL) renderer.
• Styling nodes by type and sizing them by how connected they are.
• Narrowing to an ego network with select() and expand(), then visualising it live.
• Colouring nodes by detected communities with detect_communities().
• An interactive 3D view of a small neighbourhood.

Running this tutorial

Install crategraph with Jupyter, then launch a notebook:

python -m pip install crategraph jupyter
jupyter notebook

crategraph includes the fast ForceAtlas2 layout engine used for larger graphs. The 3D view loads its JavaScript from a CDN, so viewing it needs a network connection.

1. Load the crate and glimpse its shape

from crategraph import Crate

crate = Crate("data/ohrm/EOASI2022-ro-crate")
crate

Graph(43255 entities, 95052 relationships, source='data/ohrm/EOASI2022-ro-crate')

Forty-three thousand entities is far too many to read as a table. glimpse() collapses the crate to one node per type, so you can see what it holds and how the types connect before drawing anything in detail:

crate.glimpse()

The crate is a publications-people-places network: PublishedResource (21,605) and Person (9,677) dominate, linked through Place (3,181) and Corporate_Body (2,898) entities. Most edges are preparedBy, recording who authored or curated each resource.

2. The whole graph

visualise() renders the entire graph. The default renderer is "2d", an interactive sigma.js WebGL canvas. We colour nodes by type and size them by how many connections each has, so the hubs stand out:

crate.visualise(colour_by="type", size_by="connections", filepath="eoas.html")

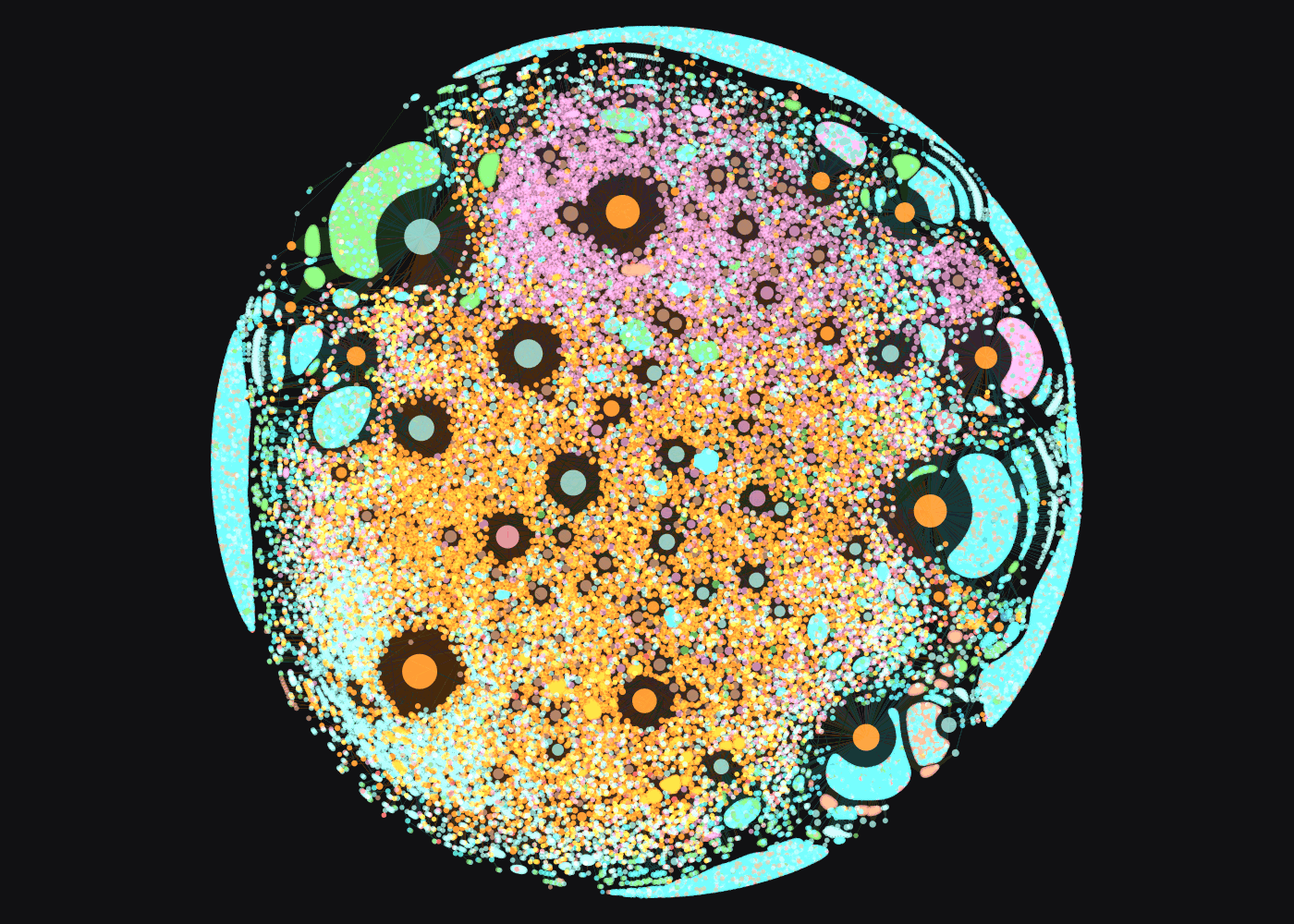

Each colour is an entity type, and the largest nodes are the busiest hubs: prolific curators, and places like Melbourne that anchor many records. Running this yourself opens an interactive page where you scroll to zoom, drag to pan, and click a node for its details. We show a snapshot here because the full 43,000-node page is several megabytes.

3. Zoom into a subset

The whole graph is striking but dense. Usually you want a neighbourhood. select() picks a starting entity and expand() grows outward by a given number of hops, building an ego network. Here we take the Australian Academy of Science and its immediate connections:

academy = crate.select(id="#A000200").expand(depth=1)
academy

Graph(551 entities, 1552 relationships, source='data/ohrm/EOASI2022-ro-crate')

Five hundred nodes is small enough to ship as a live, interactive page:

academy.visualise(colour_by="type", filepath="academy.html")

This one is interactive in the page: zoom, pan, click any node to read its properties, and use the search box to find an entity. The Academy sits at the centre with its members and award winners around it.

4. Colour by community

Colouring by type shows what each node is. Colouring by community shows how the graph clusters. detect_communities() runs the Louvain algorithm and tags every entity with a community property, which visualise() can then colour by. We take CSIRO's wider neighbourhood, two hops out:

csiro = crate.select(id="#A000196").expand(depth=2)
csiro

Graph(4463 entities, 20793 relationships, source='data/ohrm/EOASI2022-ro-crate')

simple=True drops the side panels for a clean canvas, which suits a dense graph coloured by community. As with the whole graph, we show a snapshot of the result:

csiro.detect_communities().visualise(
    colour_by="community", size_by="connections", simple=True, filepath="communities.html"
)

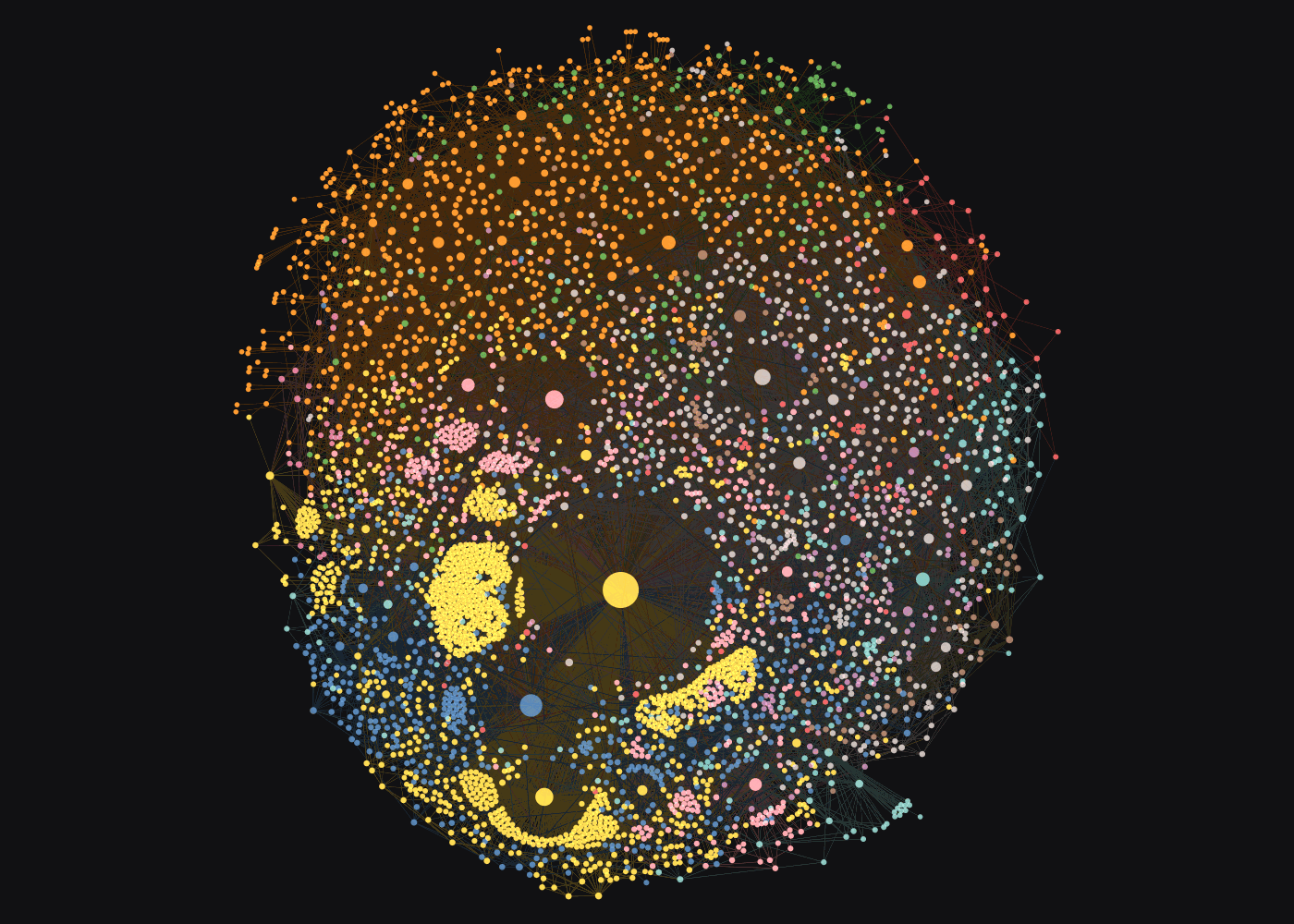

The algorithm finds nine communities, each in its own colour: clusters of people, resources, and the institutions that bind them, which separate far more clearly than the single-colour hairball a flat view would give at this size.

5. A 3D view of a small neighbourhood

The 3D renderer suits small graphs you can turn over in space. Rather than a person, we take a place: Clayton, a Melbourne suburb that hosts Monash University and several CSIRO divisions, with everything the crate anchors there:

clayton = crate.select(id="#Clayton").expand(depth=1)
clayton

Graph(45 entities, 70 relationships, source='data/ohrm/EOASI2022-ro-crate')

clayton.visualise(renderer="3d", colour_by="type", filepath="clayton-3d.html")

The place sits at the centre with the research bodies based there around it (Corporate_Body), along with a few publications (PublishedResource). Drag to rotate and scroll to zoom. At this scale the structure stays legible from any angle, whereas tens of thousands of nodes in 3D become an unreadable cloud, which is why 3D is best kept for small neighbourhoods.

Next steps

visualise() has more renderers and controls. renderer="svg" writes a static, dependency-free image, handy for a report or alongside the From Graph to DataFrame workflow, and renderer="pyvis" uses vis.js. Pass edge_width="<property>" to weight edges by a value. Pair this with Mapping the places in a collection to put the same kind of crate's geography on a map.
